Model

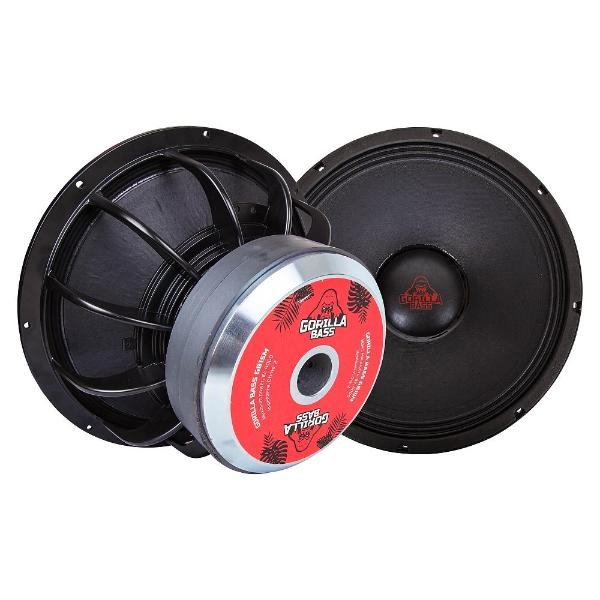

Kicx GORILLA BASS GB15M
Rating
DIAM
15"
FS(Hz)
54
VAS(l)
74.3
QTS
0.42
PWR(W)
4000
SPL(dB)
96.1
IMP(Ohm)
2x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
54
Vas(l)
74.3
Qts
0.42
Qms
12.1
Qes
0.435
Bl(Tm)
13.5
Mms(gr)
148
Cms(mm/N)
59.89
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
1.6
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
4000
RMS Power(W.)
2000
Number of Coils
1
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
2.52
Sensitivity(dB) 1-W
96.1
Sensitivity(dB) 2.8-V
103.1
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
352
Mounting Depth (mm)
206
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
