Model

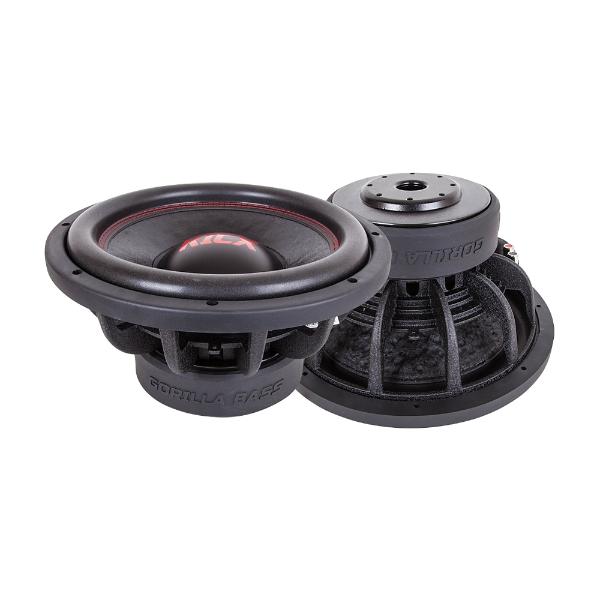

Kicx GORRILA BASS E12
Rating
DIAM
12"
FS(Hz)
32
VAS(l)
34.4
QTS
0.33
PWR(W)
2400
SPL(dB)
86.7
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
32
Vas(l)
34.4
Qts
0.33
Qms
3.16
Qes
0.37
Bl(Tm)
24
Mms(gr)
262
Cms(mm/N)
0.094
Rms(kg/s)
16.677
Le(mH)
2.63
Re(Ohm)
4
Sd(sq.mm)
50797
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
2400
RMS Power(W.)
1200
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.29
Sensitivity(dB) 1-W
86.7
Sensitivity(dB) 2.8-V
89.7
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
282
Mounting Depth (mm)
148
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
