Model

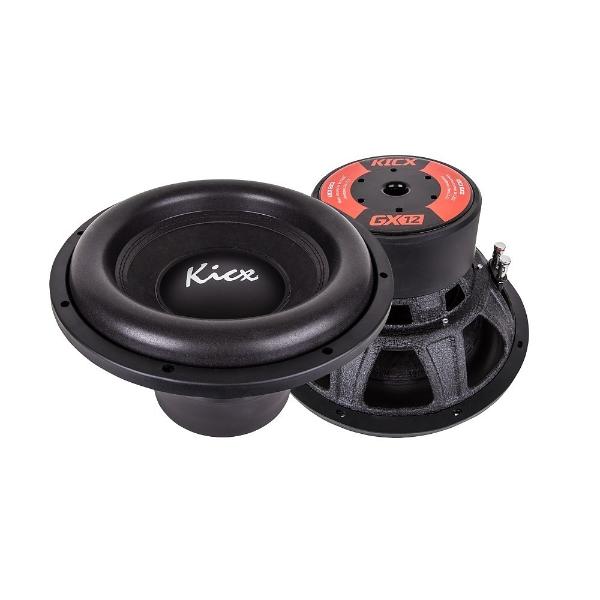

Kicx GX12
Rating
DIAM
12"
FS(Hz)
35
VAS(l)
36.8
QTS
1.3
PWR(W)
1200
SPL(dB)
83.5
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
35
Vas(l)
36.8
Qts
1.302
Qms
5.3
Qes
1.729
Bl(Tm)
0
Mms(gr)
194
Cms(mm/N)
0.106
Rms(kg/s)
8.07
Le(mH)
0
Re(Ohm)
0
Sd(sq.mm)
49462
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
1200
RMS Power(W.)
700
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.09
Sensitivity(dB) 1-W
83.5
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
282
Mounting Depth (mm)
170
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
