Model

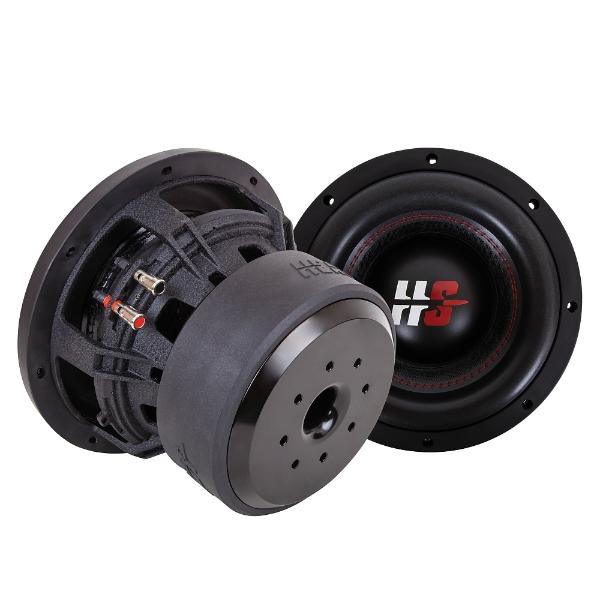

Kicx HEAD SHOT 10
Rating
DIAM
10"
FS(Hz)
32.6
VAS(l)
15.3
QTS
0.3
PWR(W)
2000
SPL(dB)
84
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
32.6
Vas(l)
15.3
Qts
0.3
Qms
4.8
Qes
0.32
Bl(Tm)
24.7
Mms(gr)
237
Cms(mm/N)
0.1
Rms(kg/s)
10.13
Le(mH)
0
Re(Ohm)
4
Sd(sq.mm)
32845
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
2000
RMS Power(W.)
1000
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.16
Sensitivity(dB) 1-W
84
Sensitivity(dB) 2.8-V
87
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
242
Mounting Depth (mm)
180
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
