Model

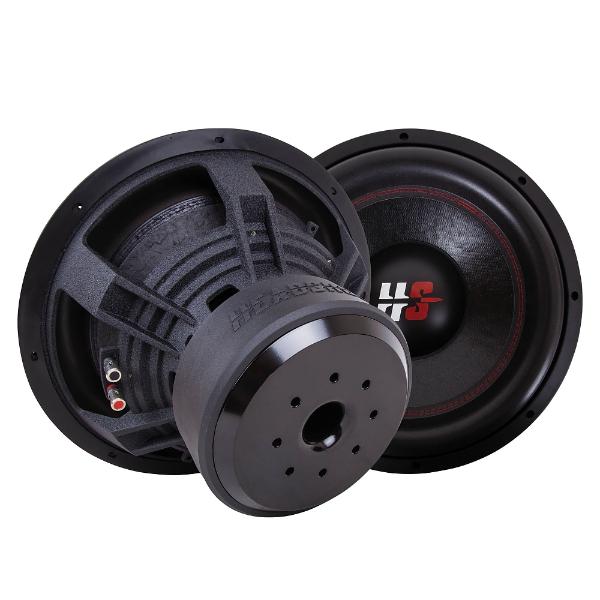

Kicx HEAD SHOT 15 D1
Rating
DIAM
15"
FS(Hz)
27.8
VAS(l)
61
QTS
0.37
PWR(W)
3000
SPL(dB)
87
IMP(Ohm)
2x2
avb
PROD
Thiele-Small Parameters
Fs(Hz)
27.8
Vas(l)
61
Qts
0.37
Qms
4.9
Qes
0.4
Bl(Tm)
19.9
Mms(gr)
456
Cms(mm/N)
0.072
Rms(kg/s)
16.25
Le(mH)
0
Re(Ohm)
2
Sd(sq.mm)
77290
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
3000
RMS Power(W.)
1500
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.32
Sensitivity(dB) 1-W
87
Sensitivity(dB) 2.8-V
93
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
397
Cutout Diameter (mm)
352
Mounting Depth (mm)
210
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
