Model

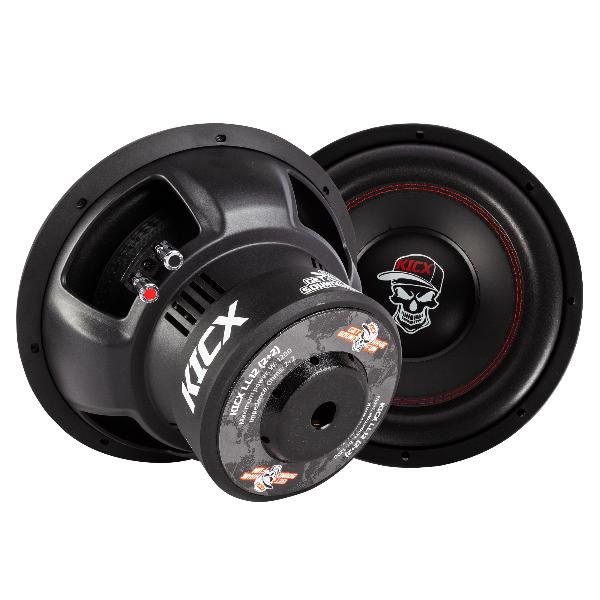

Kicx LL12 D2 (2+2 Ohm)
Rating
DIAM
12"
FS(Hz)
35
VAS(l)
16.2
QTS
0.75
PWR(W)
1200
SPL(dB)
80.8
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
35
Vas(l)
16.2
Qts
0.752
Qms
5.23
Qes
0.889
Bl(Tm)
18.5
Mms(gr)
179
Cms(mm/N)
0.213
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
3.6
Sd(sq.mm)
47100
Vd(l)
0
X-max(mm)
38
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
1200
RMS Power(W.)
600
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.08
Sensitivity(dB) 1-W
80.8
Sensitivity(dB) 2.8-V
84.2
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
316
Cutout Diameter (mm)
285
Mounting Depth (mm)
164
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
