Model

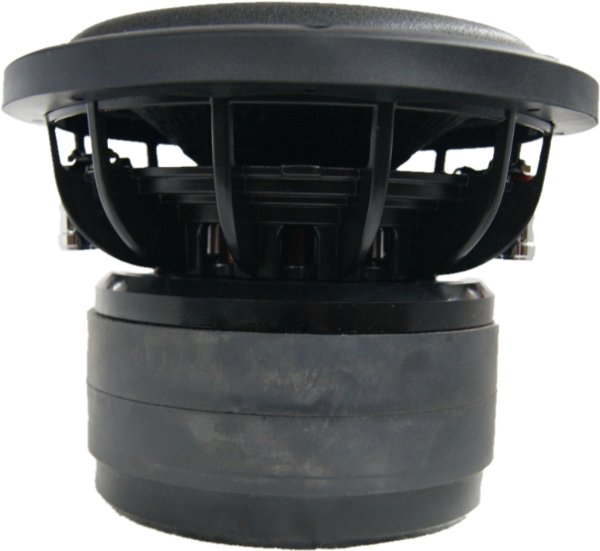

Kove X8 D2
Rating
DIAM
8"
FS(Hz)
38.9
VAS(l)
16
QTS
0.49
PWR(W)
3000
SPL(dB)
84.2
IMP(Ohm)
2x2
avb
NOPROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
38.9
Vas(l)
16
Qts
0.49
Qms
6.8
Qes
0.55
Bl(Tm)
20.6
Mms(gr)
160
Cms(mm/N)
0.12
Rms(kg/s)
5.76
Le(mH)
0
Re(Ohm)
3.8
Sd(sq.mm)
17600
Vd(l)
0.352
X-max(mm)
20
X-mech(mm)
60
General Parameters
Diameter (inch)
8
Max Power(W.)
3000
RMS Power(W.)
1000
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.16
Sensitivity(dB) 1-W
84.2
Sensitivity(dB) 2.8-V
87.4
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
213
Cutout Diameter (mm)
188
Mounting Depth (mm)
160
Magnet Diameter (mm)
180
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
