Model

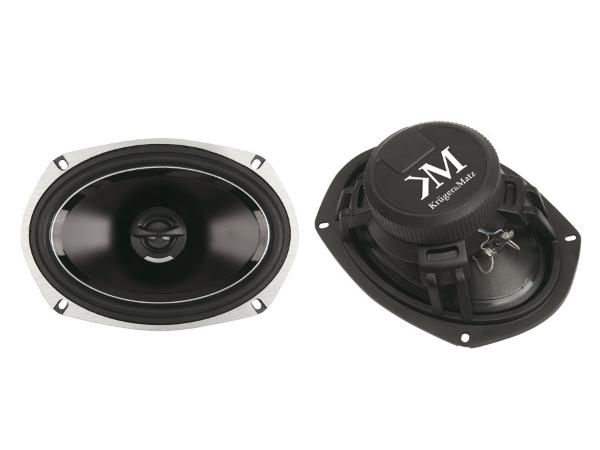

Kruger&Matz 692T11
Rating
DIAM
69"
FS(Hz)
66
VAS(l)
17.6
QTS
1.29
PWR(W)
150
SPL(dB)
86
IMP(Ohm)
4x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
66
Vas(l)
17.6
Qts
1.295
Qms
3.9
Qes
1.951
Bl(Tm)
3.5
Mms(gr)
21
Cms(mm/N)
0.277
Rms(kg/s)
2.26
Le(mH)
0
Re(Ohm)
2.8
Sd(sq.mm)
21148
Vd(l)
0.085
X-max(mm)
4
X-mech(mm)
0
General Parameters
Diameter (inch)
69
Max Power(W.)
150
RMS Power(W.)
75
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.25
Sensitivity(dB) 1-W
86
Sensitivity(dB) 2.8-V
90.5
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
