Model

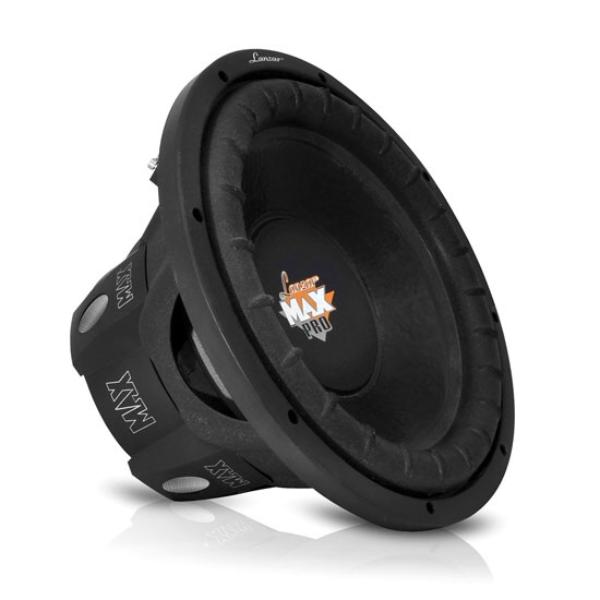

Lanzar MAXP154D
Rating
DIAM
15"
FS(Hz)
30
VAS(l)
169.9
QTS
0.75
PWR(W)
2000
SPL(dB)
88.9
IMP(Ohm)
4x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
30
Vas(l)
169.9
Qts
0.75
Qms
5
Qes
0.9
Bl(Tm)
0
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
0
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
2000
RMS Power(W.)
800
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
88.9
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
401
Cutout Diameter (mm)
371
Mounting Depth (mm)
194
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
