Model

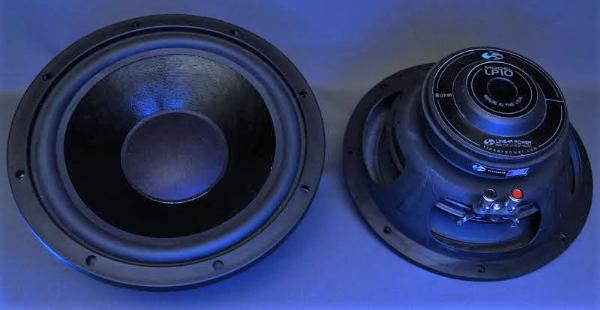

Linear Power LP10-4
Rating
DIAM
10"
FS(Hz)
32
VAS(l)
56.83
QTS
0.42
PWR(W)
300
SPL(dB)
92.6
IMP(Ohm)
4x1
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
32
Vas(l)
56.8
Qts
0.418
Qms
8.1
Qes
0.44
Bl(Tm)
10.3
Mms(gr)
65
Cms(mm/N)
0.381
Rms(kg/s)
1.61
Le(mH)
0
Re(Ohm)
3.6
Sd(sq.mm)
32432
Vd(l)
0.195
X-max(mm)
6
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
300
RMS Power(W.)
150
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.41
Sensitivity(dB) 1-W
92.6
Sensitivity(dB) 2.8-V
91.6
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
232
Mounting Depth (mm)
112
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
