Model

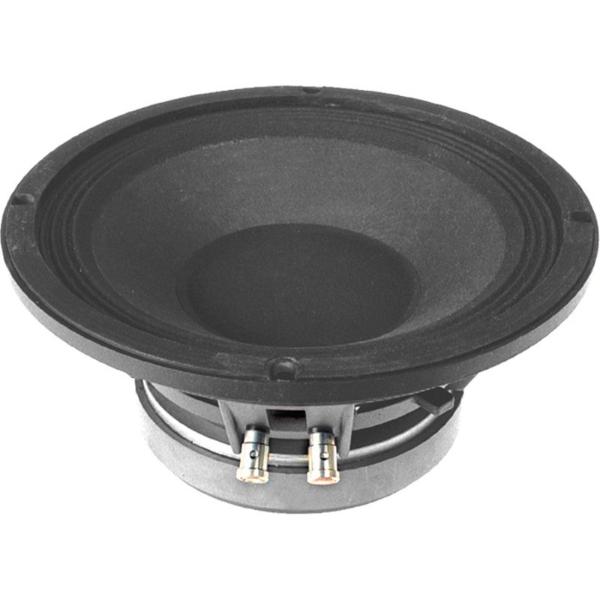

MAG M1012
Rating
DIAM
10"
FS(Hz)
48.5
VAS(l)
48
QTS
0.34
PWR(W)
360
SPL(dB)
93.7
IMP(Ohm)
4x1
avb
NOPROD
Thiele-Small Parameters
Fs(Hz)
48.5
Vas(l)
48
Qts
0.34
Qms
6.6
Qes
0.36
Bl(Tm)
13.9
Mms(gr)
33
Cms(mm/N)
0
Rms(kg/s)
1.524
Le(mH)
0
Re(Ohm)
6.7
Sd(sq.mm)
33000
Vd(l)
0.148
X-max(mm)
5
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
360
RMS Power(W.)
180
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
93.7
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
231
Mounting Depth (mm)
115
Magnet Diameter (mm)
156
Optimum Enclosures
Enclosures
Vented, BP6P
