Model

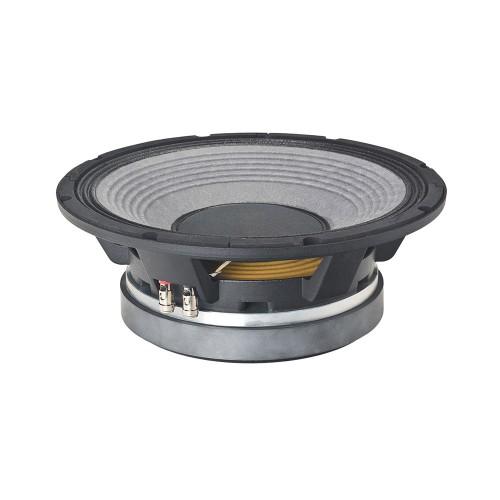

MAG M1201
Rating
DIAM
12"
FS(Hz)
44.6
VAS(l)
49
QTS
0.26
PWR(W)
2000
SPL(dB)
93.9
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
44.6
Vas(l)
49
Qts
0.26
Qms
6.4
Qes
0.27
Bl(Tm)
27
Mms(gr)
113
Cms(mm/N)
0.113
Rms(kg/s)
4.948
Le(mH)
2.6
Re(Ohm)
6.2
Sd(sq.mm)
55294
Vd(l)
0.498
X-max(mm)
9
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
2000
RMS Power(W.)
1000
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
1.55
Sensitivity(dB) 1-W
93.9
Sensitivity(dB) 2.8-V
95
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
312
Cutout Diameter (mm)
282
Mounting Depth (mm)
130
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6P
