Model

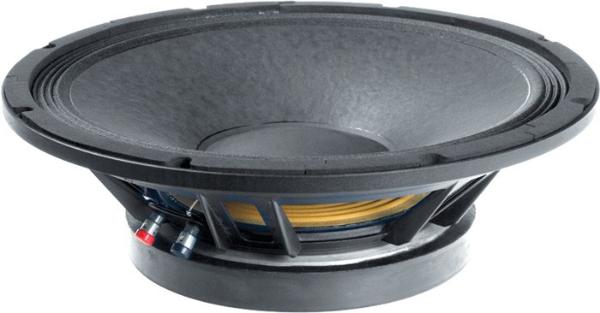

MAG M1534
Rating
DIAM
15"
FS(Hz)
39.1
VAS(l)
164
QTS
0.37
PWR(W)
800
SPL(dB)
96
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
39.1
Vas(l)
164
Qts
0.37
Qms
10.7
Qes
0.38
Bl(Tm)
21.1
Mms(gr)
96
Cms(mm/N)
0.172
Rms(kg/s)
2.206
Le(mH)
0
Re(Ohm)
6.7
Sd(sq.mm)
86000
Vd(l)
0.516
X-max(mm)
6
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
800
RMS Power(W.)
400
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
96
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
357
Mounting Depth (mm)
135
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6P
