Model

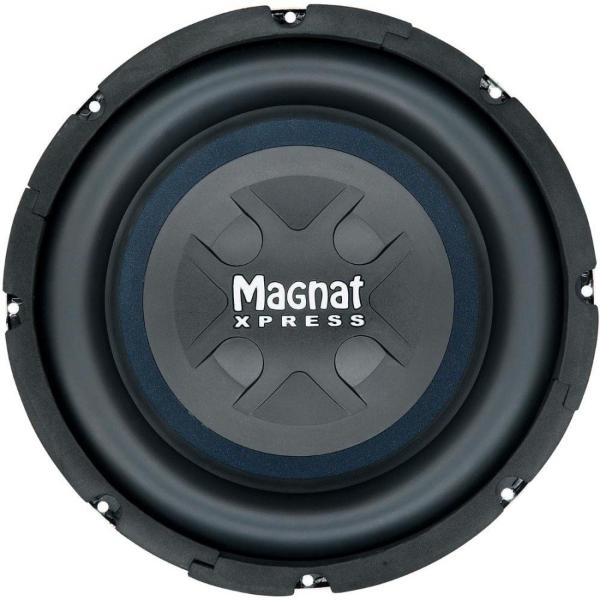

Magnat XPRESS 15
Rating
DIAM
15"
FS(Hz)
21
VAS(l)
250
QTS
0.52
PWR(W)
450
SPL(dB)
94
IMP(Ohm)
4x1
avb
UNK
Thiele-Small Parameters
Fs(Hz)
21
Vas(l)
250
Qts
0.52
Qms
9.5
Qes
0.55
Bl(Tm)
0
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
3.3
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
6
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
450
RMS Power(W.)
220
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
94
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
350
Mounting Depth (mm)
150
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
