Model

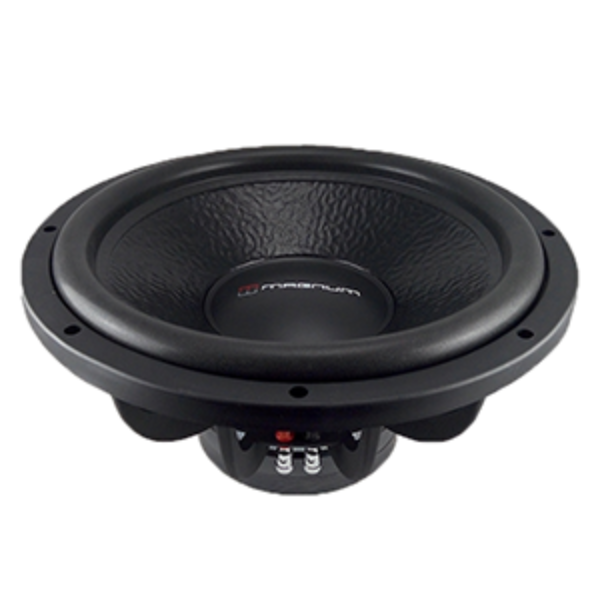

MAGNUM MBW 15-22DC
Rating
DIAM
15"
FS(Hz)
28
VAS(l)
86
QTS
0.44
PWR(W)
2600
SPL(dB)
88.2
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
28
Vas(l)
86
Qts
0.44
Qms
6.9
Qes
0.47
Bl(Tm)
21.5
Mms(gr)
320
Cms(mm/N)
0.101
Rms(kg/s)
8.16
Le(mH)
0
Re(Ohm)
3.9
Sd(sq.mm)
77484
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
2600
RMS Power(W.)
1300
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.39
Sensitivity(dB) 1-W
88.2
Sensitivity(dB) 2.8-V
91
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
397
Cutout Diameter (mm)
354
Mounting Depth (mm)
183
Magnet Diameter (mm)
180
Optimum Enclosures
Enclosures
BP4, BP6P, Closed, Vented
