Model

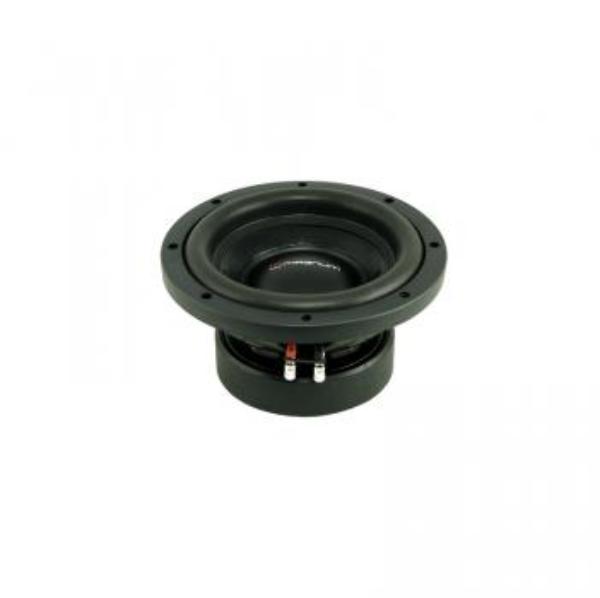

MAGNUM MLW 8-22SM
Rating
DIAM
8"
FS(Hz)
47.7
VAS(l)
6.4
QTS
0.55
PWR(W)
500
SPL(dB)
82.3
IMP(Ohm)
2x2
avb
PROD
Thiele-Small Parameters
Fs(Hz)
47.7
Vas(l)
6.4
Qts
0.55
Qms
4.7
Qes
0.62
Bl(Tm)
0
Mms(gr)
98
Cms(mm/N)
0.114
Rms(kg/s)
6.24
Le(mH)
0
Re(Ohm)
0
Sd(sq.mm)
19896
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
8
Max Power(W.)
500
RMS Power(W.)
250
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.11
Sensitivity(dB) 1-W
82.3
Sensitivity(dB) 2.8-V
83.5
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
214
Cutout Diameter (mm)
185
Mounting Depth (mm)
105
Magnet Diameter (mm)
140
Optimum Enclosures
Enclosures
BP4, BP6P, Closed, Vented
