Model

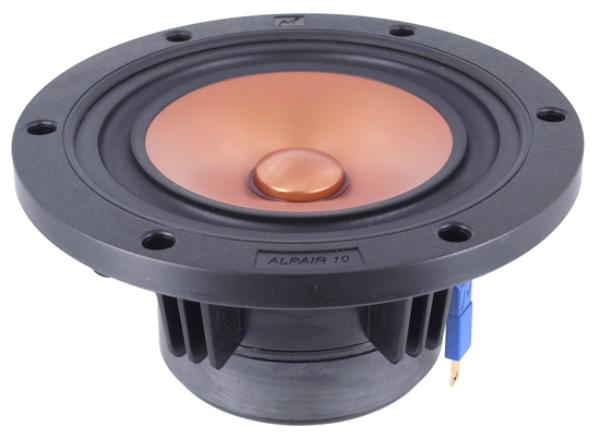

Markaudio ALPAIR 10 GEN. 3
Rating
DIAM
6"
FS(Hz)
38.3
VAS(l)
26.3
QTS
0.32
PWR(W)
60
SPL(dB)
87.8
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
38.3
Vas(l)
26.3
Qts
0.316
Qms
1.9
Qes
0.378
Bl(Tm)
5.8
Mms(gr)
7
Cms(mm/N)
2.38
Rms(kg/s)
0.91
Le(mH)
0.07
Re(Ohm)
7.2
Sd(sq.mm)
8825
Vd(l)
0.066
X-max(mm)
8
X-mech(mm)
0
General Parameters
Diameter (inch)
6
Max Power(W.)
60
RMS Power(W.)
30
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.38
Sensitivity(dB) 1-W
87.8
Sensitivity(dB) 2.8-V
88.2
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
160
Cutout Diameter (mm)
139
Mounting Depth (mm)
78
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6P
