Model

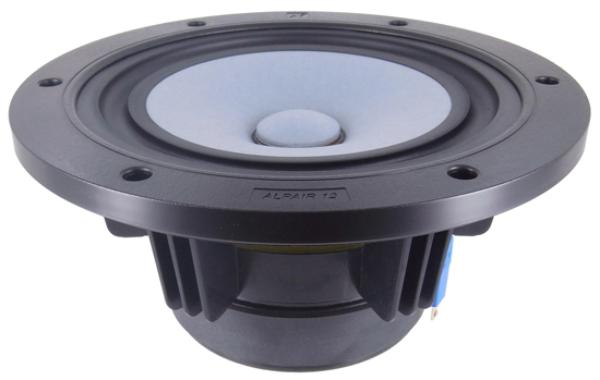

Markaudio ALPAIR 10P
Rating
DIAM
5"
FS(Hz)
42.4
VAS(l)
30
QTS
0.33
PWR(W)
60
SPL(dB)
89.6
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
42.4
Vas(l)
30
Qts
0.33
Qms
2.4
Qes
0.382
Bl(Tm)
4.7
Mms(gr)
5
Cms(mm/N)
2.71
Rms(kg/s)
0.57
Le(mH)
0
Re(Ohm)
6.2
Sd(sq.mm)
8835
Vd(l)
0.062
X-max(mm)
7
X-mech(mm)
0
General Parameters
Diameter (inch)
5
Max Power(W.)
60
RMS Power(W.)
30
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.58
Sensitivity(dB) 1-W
89.6
Sensitivity(dB) 2.8-V
90.7
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
164
Cutout Diameter (mm)
139
Mounting Depth (mm)
68
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6P
