Model

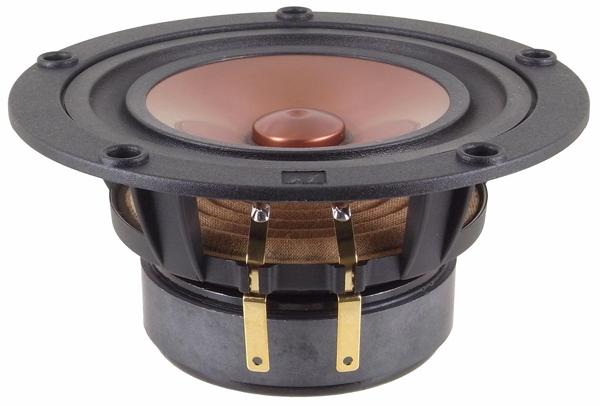

Markaudio PLUVIA 7
Rating
DIAM
7"
FS(Hz)
67.9
VAS(l)
5.5
QTS
0.54
PWR(W)
44
SPL(dB)
85.8
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
67.9
Vas(l)
5.5
Qts
0.538
Qms
2.391
Qes
0.694
Bl(Tm)
4
Mms(gr)
4
Cms(mm/N)
1.545
Rms(kg/s)
0.635
Le(mH)
0
Re(Ohm)
7.2
Sd(sq.mm)
5030
Vd(l)
0.02
X-max(mm)
4
X-mech(mm)
0
General Parameters
Diameter (inch)
7
Max Power(W.)
44
RMS Power(W.)
22
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
85.8
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
100
Mounting Depth (mm)
55
Magnet Diameter (mm)
70
Optimum Enclosures
Enclosures
Vented, BP6P
