Model

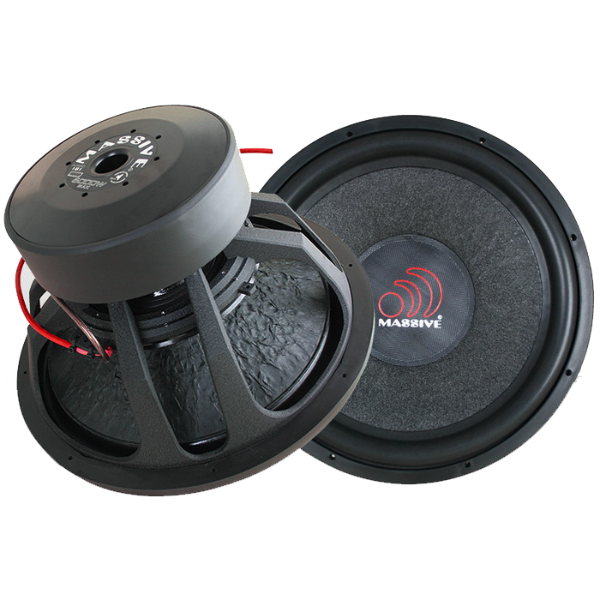

Massive GORDO 18
Rating
DIAM
18"
FS(Hz)
34.4
VAS(l)
88.6
QTS
0.46
PWR(W)
6000
SPL(dB)
90.4
IMP(Ohm)
1x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
34.4
Vas(l)
88.6
Qts
0.462
Qms
5.6
Qes
0.504
Bl(Tm)
9.1
Mms(gr)
463
Cms(mm/N)
0.046
Rms(kg/s)
17.85
Le(mH)
0.54
Re(Ohm)
0.4
Sd(sq.mm)
122000
Vd(l)
1.83
X-max(mm)
15
X-mech(mm)
35
General Parameters
Diameter (inch)
18
Max Power(W.)
6000
RMS Power(W.)
3000
Number of Coils
2
Impedance Z-Nom(Ohm)
1
Reference efficiency η0(%)
0.69
Sensitivity(dB) 1-W
90.4
Sensitivity(dB) 2.8-V
103.2
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
475
Cutout Diameter (mm)
422
Mounting Depth (mm)
246
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
