Model

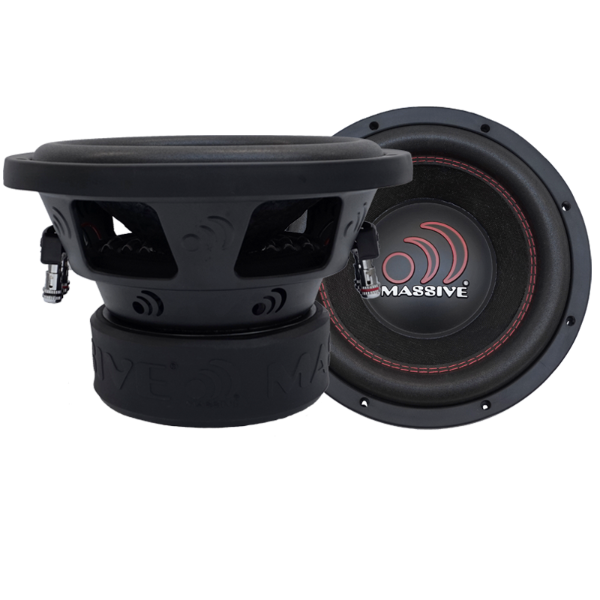

Massive GTX 102
Rating
DIAM
10"
FS(Hz)
46.2
VAS(l)
9.4
QTS
0.74
PWR(W)
1400
SPL(dB)
82.3
IMP(Ohm)
2x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
46.2
Vas(l)
9.4
Qts
0.74
Qms
6.738
Qes
0.825
Bl(Tm)
16.5
Mms(gr)
196
Cms(mm/N)
0.06
Rms(kg/s)
8.48
Le(mH)
0.72
Re(Ohm)
3.6
Sd(sq.mm)
33000
Vd(l)
0.495
X-max(mm)
15
X-mech(mm)
37
General Parameters
Diameter (inch)
10
Max Power(W.)
1400
RMS Power(W.)
700
Number of Coils
1
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.11
Sensitivity(dB) 1-W
82.3
Sensitivity(dB) 2.8-V
88
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
264
Cutout Diameter (mm)
230
Mounting Depth (mm)
161
Magnet Diameter (mm)
162
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
