Model

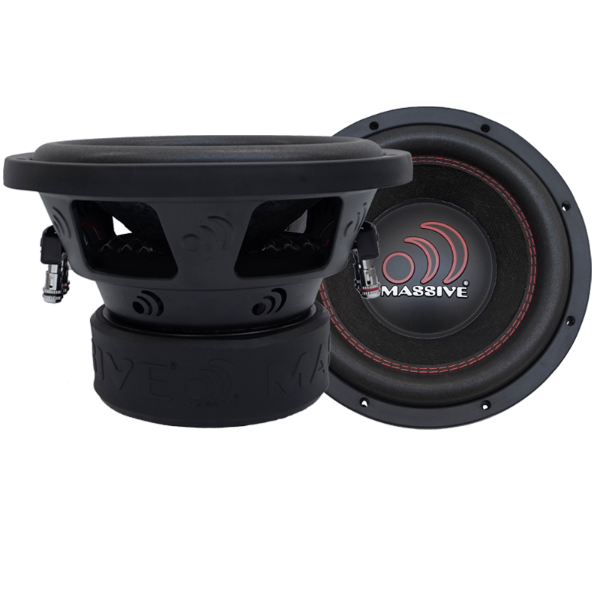

Massive GTX104
Rating
DIAM
10"
FS(Hz)
49.8
VAS(l)
6.7
QTS
0.61
PWR(W)
1400
SPL(dB)
86.2
IMP(Ohm)
4x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
49.8
Vas(l)
6.7
Qts
0.61
Qms
5.87
Qes
0.681
Bl(Tm)
13.5
Mms(gr)
200
Cms(mm/N)
0.04
Rms(kg/s)
10.68
Le(mH)
0.91
Re(Ohm)
1.7
Sd(sq.mm)
0
Vd(l)
4.23
X-max(mm)
15
X-mech(mm)
37
General Parameters
Diameter (inch)
10
Max Power(W.)
1400
RMS Power(W.)
700
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.12
Sensitivity(dB) 1-W
86.2
Sensitivity(dB) 2.8-V
87.5
Mounting Information
Speaker Displacement (l)
1.557
Total Diameter (mm)
0
Cutout Diameter (mm)
230
Mounting Depth (mm)
161
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
