Model

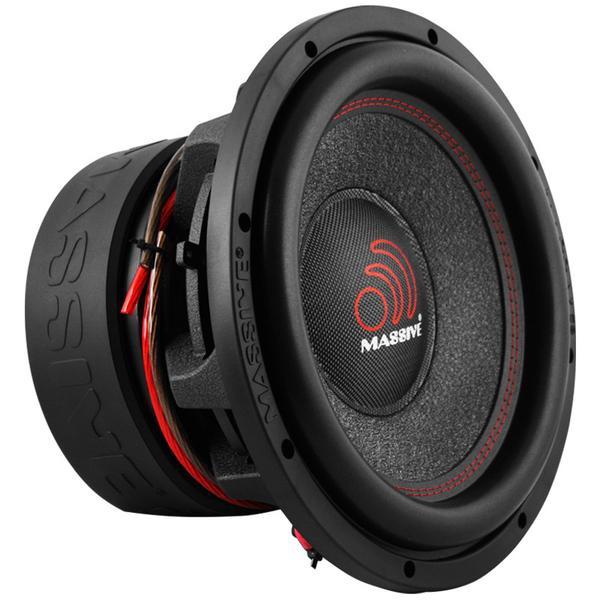

Massive HIPPO XL 122
Rating
DIAM
12"
FS(Hz)
34.2
VAS(l)
23.4
QTS
0.35
PWR(W)
4000
SPL(dB)
85.8
IMP(Ohm)
2x2
avb
PROD
Thiele-Small Parameters
Fs(Hz)
34.2
Vas(l)
23.4
Qts
0.35
Qms
4.537
Qes
0.379
Bl(Tm)
14.5
Mms(gr)
363
Cms(mm/N)
0.06
Rms(kg/s)
17.184
Le(mH)
0
Re(Ohm)
1
Sd(sq.mm)
52417
Vd(l)
0.786
X-max(mm)
15
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
4000
RMS Power(W.)
2000
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
85.8
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
2.69
Total Diameter (mm)
0
Cutout Diameter (mm)
285
Mounting Depth (mm)
193
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6P
