Model

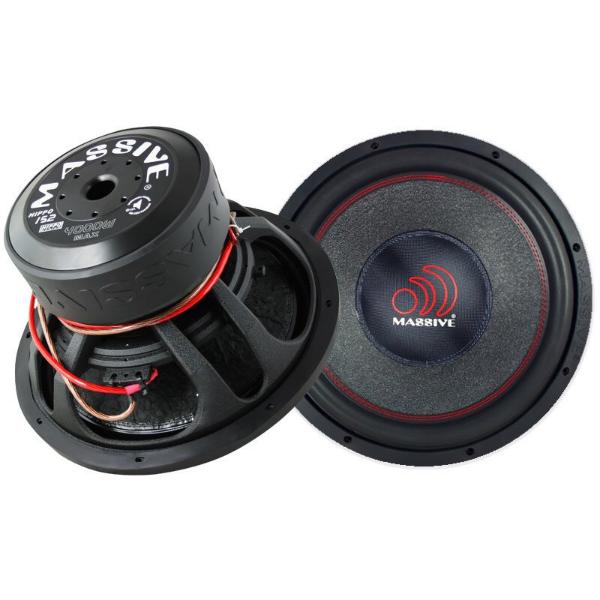

Massive HIPPO XL 152
Rating
DIAM
15"
FS(Hz)
34
VAS(l)
42.5
QTS
0.37
PWR(W)
4000
SPL(dB)
88
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
34
Vas(l)
42.5
Qts
0.37
Qms
4.06
Qes
0.407
Bl(Tm)
14.9
Mms(gr)
466
Cms(mm/N)
0.047
Rms(kg/s)
24.53
Le(mH)
0
Re(Ohm)
0.9
Sd(sq.mm)
79879
Vd(l)
1.197
X-max(mm)
15
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
4000
RMS Power(W.)
2000
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
88
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
4.955
Total Diameter (mm)
0
Cutout Diameter (mm)
350
Mounting Depth (mm)
211
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
