Model

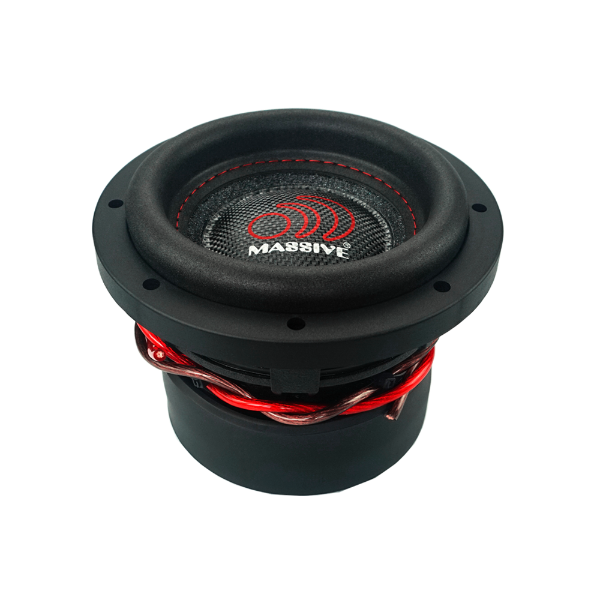

Massive HIPPO XL64
Rating
DIAM
6"
FS(Hz)
57
VAS(l)
1.7
QTS
0.74
PWR(W)
600
SPL(dB)
77.7
IMP(Ohm)
4x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
57
Vas(l)
1.7
Qts
0.74
Qms
6.7
Qes
0.8
Bl(Tm)
9.4
Mms(gr)
127
Cms(mm/N)
0.062
Rms(kg/s)
6.77
Le(mH)
1.8
Re(Ohm)
1.6
Sd(sq.mm)
13740
Vd(l)
0.137
X-max(mm)
10
X-mech(mm)
34
General Parameters
Diameter (inch)
6
Max Power(W.)
600
RMS Power(W.)
300
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.04
Sensitivity(dB) 1-W
77.7
Sensitivity(dB) 2.8-V
84.7
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
183
Cutout Diameter (mm)
151
Mounting Depth (mm)
114
Magnet Diameter (mm)
138
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
