Model

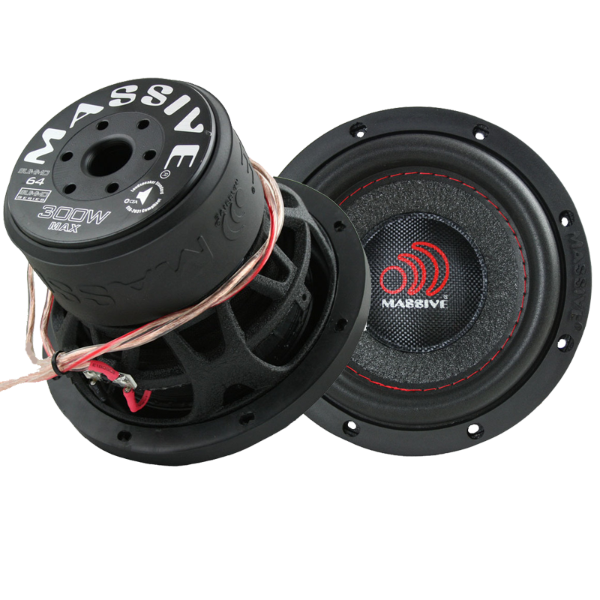

Massive SUMMO 64
Rating
DIAM
6"
FS(Hz)
53.3
VAS(l)
4.1
QTS
0.67
PWR(W)
300
SPL(dB)
80.9
IMP(Ohm)
4x1
avb
NOPROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
53.3
Vas(l)
4.1
Qts
0.665
Qms
4.758
Qes
0.759
Bl(Tm)
8.5
Mms(gr)
51
Cms(mm/N)
0.174
Rms(kg/s)
3.603
Le(mH)
2.762
Re(Ohm)
3.4
Sd(sq.mm)
14000
Vd(l)
1.168
X-max(mm)
9
X-mech(mm)
28
General Parameters
Diameter (inch)
6
Max Power(W.)
300
RMS Power(W.)
150
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.08
Sensitivity(dB) 1-W
80.9
Sensitivity(dB) 2.8-V
84.6
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
180
Cutout Diameter (mm)
152
Mounting Depth (mm)
121
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
