Model

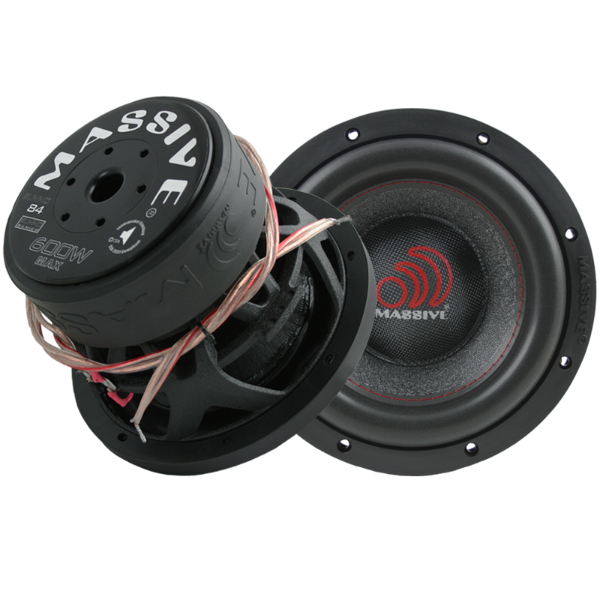

Massive SUMMO 84
Rating
DIAM
8"
FS(Hz)
37.9
VAS(l)
15.3
QTS
0.44
PWR(W)
600
SPL(dB)
91.4
IMP(Ohm)
2x2
avb
PROD
Thiele-Small Parameters
Fs(Hz)
37.9
Vas(l)
15.3
Qts
0.439
Qms
0
Qes
0
Bl(Tm)
0
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
0
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
10
X-mech(mm)
0
General Parameters
Diameter (inch)
8
Max Power(W.)
600
RMS Power(W.)
300
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
91.4
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
2.832
Total Diameter (mm)
207
Cutout Diameter (mm)
188
Mounting Depth (mm)
191
Magnet Diameter (mm)
168
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
