Model

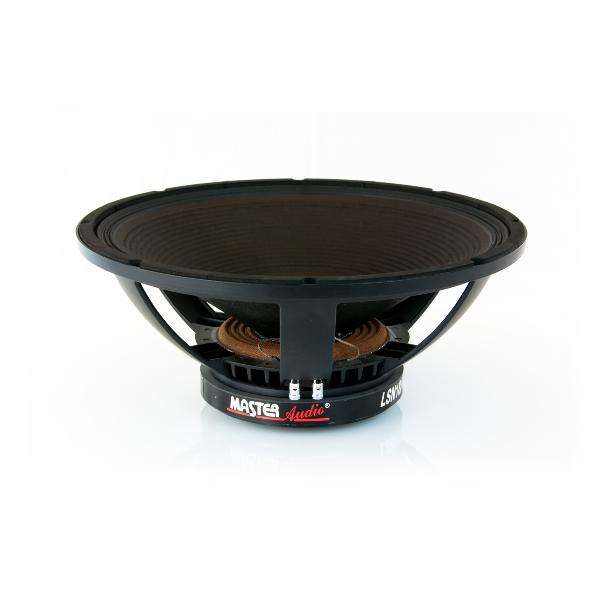

Master Audio LSN18/8
Rating
DIAM
18"
FS(Hz)
37
VAS(l)
330
QTS
0.36
PWR(W)
1600
SPL(dB)
98
IMP(Ohm)
8x1
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
37
Vas(l)
330
Qts
0.36
Qms
5.1
Qes
0.33
Bl(Tm)
22.2
Mms(gr)
108
Cms(mm/N)
0.172
Rms(kg/s)
4.9
Le(mH)
0.94
Re(Ohm)
6.5
Sd(sq.mm)
116200
Vd(l)
0.988
X-max(mm)
9
X-mech(mm)
9
General Parameters
Diameter (inch)
18
Max Power(W.)
1600
RMS Power(W.)
800
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
4.88
Sensitivity(dB) 1-W
98
Sensitivity(dB) 2.8-V
99.8
Mounting Information
Speaker Displacement (l)
2.5
Total Diameter (mm)
460
Cutout Diameter (mm)
420
Mounting Depth (mm)
203
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6P
