Model

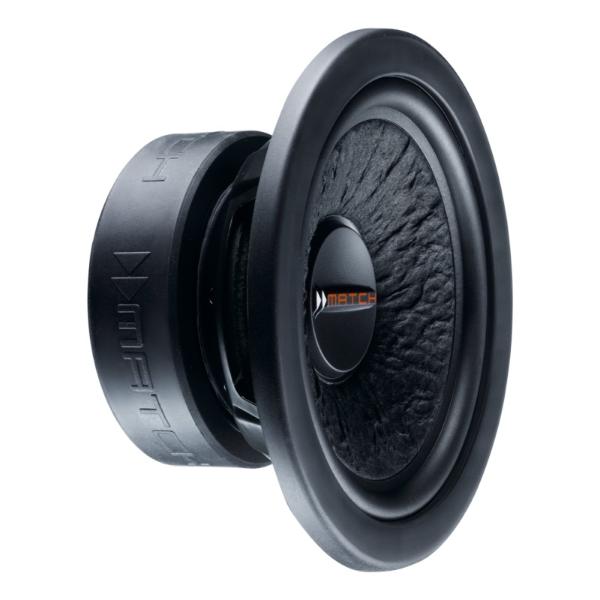

Match PP 72W-D
Rating
DIAM
7"
FS(Hz)
53
VAS(l)
7.9
QTS
0.37
PWR(W)
200
SPL(dB)
86.3
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
53
Vas(l)
7.9
Qts
0.37
Qms
3.3
Qes
0.417
Bl(Tm)
8
Mms(gr)
25
Cms(mm/N)
0.361
Rms(kg/s)
1.342
Le(mH)
0
Re(Ohm)
3.2
Sd(sq.mm)
12422
Vd(l)
0.062
X-max(mm)
5
X-mech(mm)
0
General Parameters
Diameter (inch)
7
Max Power(W.)
200
RMS Power(W.)
100
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
86.3
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
133
Mounting Depth (mm)
79
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
