Model

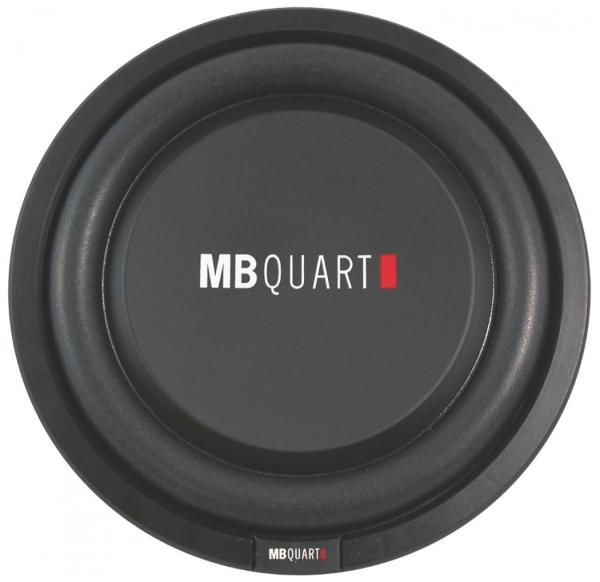

MB Quart RLP304
Rating
DIAM
12"
FS(Hz)
29.1
VAS(l)
54
QTS
0.84
PWR(W)
600
SPL(dB)
83.3
IMP(Ohm)
4x2
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
29.1
Vas(l)
54
Qts
0.837
Qms
6.928
Qes
0.952
Bl(Tm)
15.4
Mms(gr)
174
Cms(mm/N)
0.171
Rms(kg/s)
4.6
Le(mH)
0
Re(Ohm)
7
Sd(sq.mm)
47178
Vd(l)
0.424
X-max(mm)
9
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
600
RMS Power(W.)
300
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.13
Sensitivity(dB) 1-W
83.3
Sensitivity(dB) 2.8-V
83.8
Mounting Information
Speaker Displacement (l)
2.29
Total Diameter (mm)
312
Cutout Diameter (mm)
269
Mounting Depth (mm)
76
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
