Model

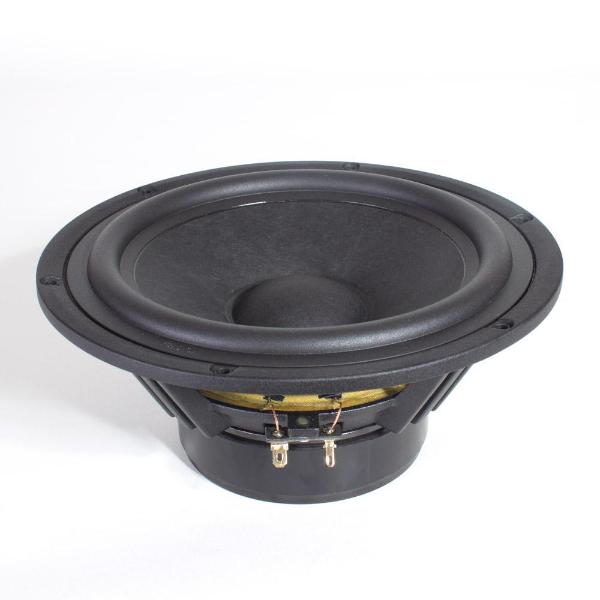

MCM Audio Select 55-5670
Rating
DIAM
8"
FS(Hz)
33.1
VAS(l)
61.7
QTS
0.32
PWR(W)
160
SPL(dB)
89.1
IMP(Ohm)
8x1
avb
UNK
Thiele-Small Parameters
Fs(Hz)
33.1
Vas(l)
61.7
Qts
0.322
Qms
1.4
Qes
0.421
Bl(Tm)
8.7
Mms(gr)
24
Cms(mm/N)
0.974
Rms(kg/s)
3.59
Le(mH)
0.91
Re(Ohm)
6.5
Sd(sq.mm)
21136
Vd(l)
0.159
X-max(mm)
8
X-mech(mm)
0
General Parameters
Diameter (inch)
8
Max Power(W.)
160
RMS Power(W.)
80
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.51
Sensitivity(dB) 1-W
89.1
Sensitivity(dB) 2.8-V
90
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
