Model

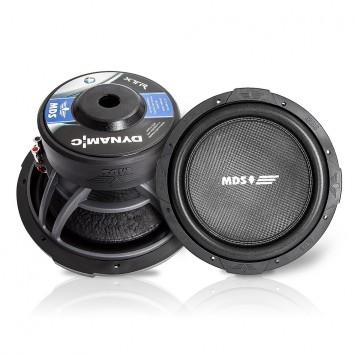

MDS DYNAMIC XTR80012D2
Rating
DIAM
12"
FS(Hz)
35
VAS(l)
43.2
QTS
0.55
PWR(W)
2800
SPL(dB)
86.7
IMP(Ohm)
2x2
avb
UNK
Thiele-Small Parameters
Fs(Hz)
35
Vas(l)
43.2
Qts
0.548
Qms
5.7
Qes
0.607
Bl(Tm)
7.8
Mms(gr)
162
Cms(mm/N)
0.128
Rms(kg/s)
6.24
Le(mH)
1.12
Re(Ohm)
1
Sd(sq.mm)
48782
Vd(l)
1.22
X-max(mm)
25
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
2800
RMS Power(W.)
800
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.29
Sensitivity(dB) 1-W
86.7
Sensitivity(dB) 2.8-V
95.5
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
284
Mounting Depth (mm)
156
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
