Model

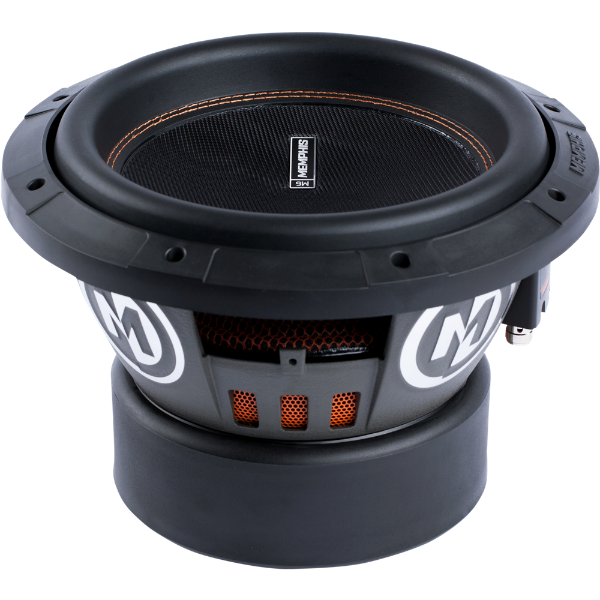

Memphis Audio M612D4
Rating
Attention! Parameters of that speaker were not checked: a source of data, manual were not found.
DIAM
12"
FS(Hz)
35.2
VAS(l)
18.8
QTS
0.84
PWR(W)
1400
SPL(dB)
81.3
IMP(Ohm)
4x2
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
35.2
Vas(l)
18.8
Qts
0.842
Qms
10.259
Qes
0.917
Bl(Tm)
20.8
Mms(gr)
388
Cms(mm/N)
0.053
Rms(kg/s)
8.368
Le(mH)
0
Re(Ohm)
4.6
Sd(sq.mm)
50273
Vd(l)
0.603
X-max(mm)
12
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
1400
RMS Power(W.)
700
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
81.3
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
