Model

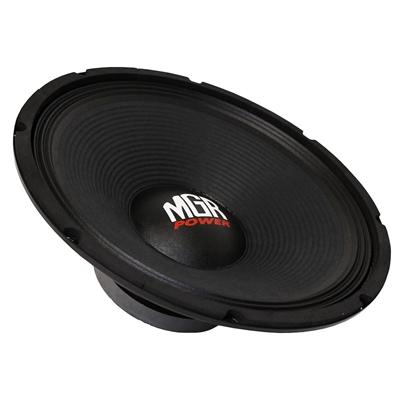

MGR P-1500W
Rating
DIAM
15"
FS(Hz)
34
VAS(l)
232.3
QTS
0.55
PWR(W)
400
SPL(dB)
93.3
IMP(Ohm)
8x1
avb
UNK
Thiele-Small Parameters
Fs(Hz)
34
Vas(l)
232.3
Qts
0.546
Qms
3.2
Qes
0.658
Bl(Tm)
14.6
Mms(gr)
97
Cms(mm/N)
0.227
Rms(kg/s)
6.44
Le(mH)
0
Re(Ohm)
6.8
Sd(sq.mm)
85000
Vd(l)
0.552
X-max(mm)
7
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
400
RMS Power(W.)
200
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
1.34
Sensitivity(dB) 1-W
93.3
Sensitivity(dB) 2.8-V
94
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
