Model

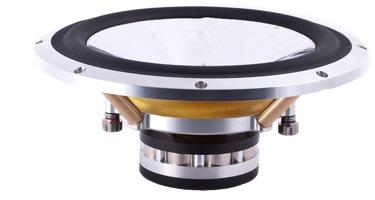

Micro Precision Z-STUDIO 245
Rating
DIAM
10"
FS(Hz)
23
VAS(l)
172
QTS
0.68
PWR(W)
300
SPL(dB)
84.9
IMP(Ohm)
6x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
23
Vas(l)
172
Qts
0.68
Qms
1.98
Qes
1.03
Bl(Tm)
5.7
Mms(gr)
43
Cms(mm/N)
1.114
Rms(kg/s)
3.12
Le(mH)
0
Re(Ohm)
5.3
Sd(sq.mm)
32995
Vd(l)
0.363
X-max(mm)
11
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
300
RMS Power(W.)
100
Number of Coils
1
Impedance Z-Nom(Ohm)
6
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
84.9
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
233
Mounting Depth (mm)
102
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
