Model

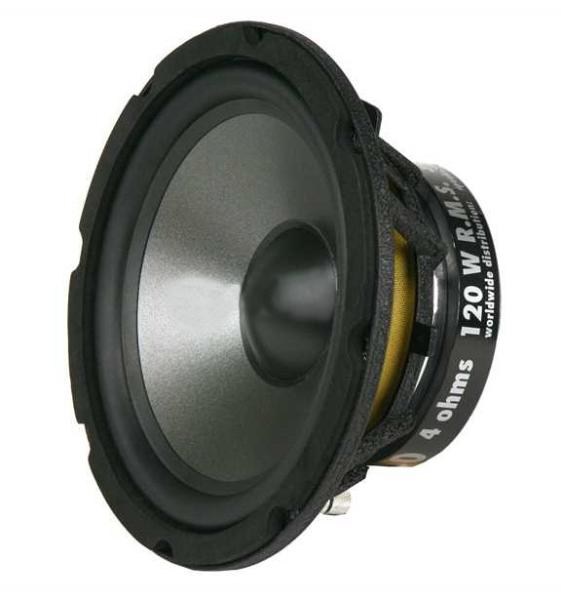

Mivoc AW2000
Rating
DIAM
8"
FS(Hz)
30
VAS(l)
37
QTS
0.29
PWR(W)
300
SPL(dB)
86.9
IMP(Ohm)
4x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
30
Vas(l)
37
Qts
0.29
Qms
4.1
Qes
0.312
Bl(Tm)
9.4
Mms(gr)
49
Cms(mm/N)
0.574
Rms(kg/s)
2.253
Le(mH)
0
Re(Ohm)
3
Sd(sq.mm)
21400
Vd(l)
0.139
X-max(mm)
7
X-mech(mm)
0
General Parameters
Diameter (inch)
8
Max Power(W.)
300
RMS Power(W.)
120
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
86.9
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
183
Mounting Depth (mm)
96
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
