Model

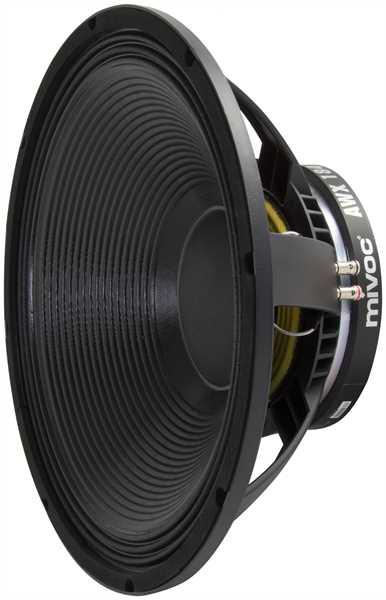

Mivoc AWX 184 MKII
Rating
DIAM
18"
FS(Hz)
32
VAS(l)
280
QTS
0.36
PWR(W)
1200
SPL(dB)
98
IMP(Ohm)
4x1
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
32
Vas(l)
280
Qts
0.36
Qms
6.1
Qes
0.38
Bl(Tm)
18.5
Mms(gr)
188
Cms(mm/N)
0.132
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
3.5
Sd(sq.mm)
123200
Vd(l)
0.68
X-max(mm)
6
X-mech(mm)
0
General Parameters
Diameter (inch)
18
Max Power(W.)
1200
RMS Power(W.)
600
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
98
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
420
Mounting Depth (mm)
193
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
