Model

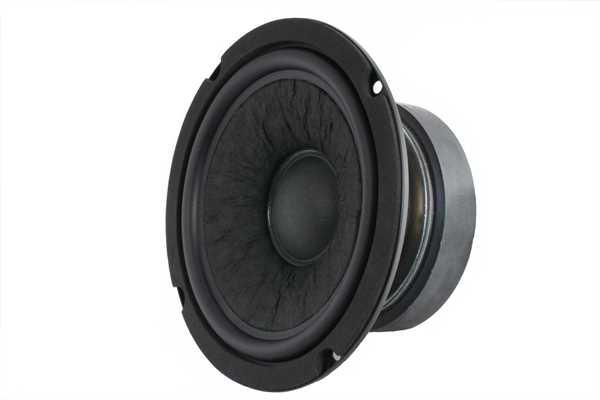

Mivoc SWM68
Rating
DIAM
7"
FS(Hz)
47
VAS(l)
11.5
QTS
0.41
PWR(W)
200
SPL(dB)
85.5
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
47
Vas(l)
11.5
Qts
0.41
Qms
2
Qes
0.516
Bl(Tm)
9.1
Mms(gr)
22
Cms(mm/N)
0.528
Rms(kg/s)
3.204
Le(mH)
0
Re(Ohm)
6.6
Sd(sq.mm)
12470
Vd(l)
0.079
X-max(mm)
6
X-mech(mm)
0
General Parameters
Diameter (inch)
7
Max Power(W.)
200
RMS Power(W.)
120
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
85.5
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
132
Mounting Depth (mm)
78
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
