Model

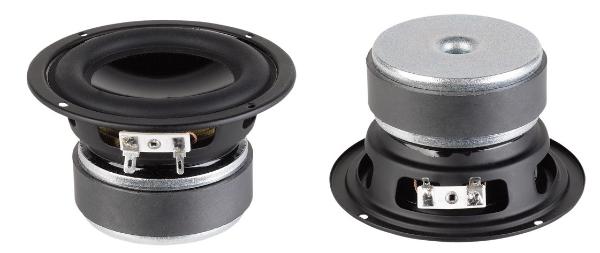

Mivoc WAL 416
Rating
DIAM
4"
FS(Hz)
61
VAS(l)
4
QTS
0.55
PWR(W)
150
SPL(dB)
83.6
IMP(Ohm)
16x1
avb
UNK
Thiele-Small Parameters
Fs(Hz)
61
Vas(l)
4
Qts
0.55
Qms
5.45
Qes
0.612
Bl(Tm)
6.9
Mms(gr)
7
Cms(mm/N)
0.987
Rms(kg/s)
0.485
Le(mH)
0
Re(Ohm)
11
Sd(sq.mm)
5346
Vd(l)
0.029
X-max(mm)
6
X-mech(mm)
0
General Parameters
Diameter (inch)
4
Max Power(W.)
150
RMS Power(W.)
60
Number of Coils
1
Impedance Z-Nom(Ohm)
16
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
83.6
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
92
Mounting Depth (mm)
64
Magnet Diameter (mm)
80
Optimum Enclosures
Enclosures
Vented, BP6
