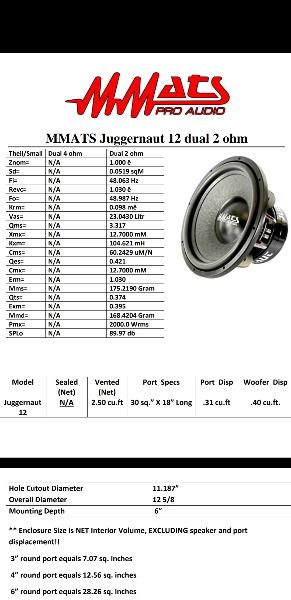

Model
Mmats JUGGERNAUT 12-D2
Rating
DIAM
12"
FS(Hz)
48.1
VAS(l)
23
QTS
0.37
PWR(W)
4000
SPL(dB)
0
IMP(Ohm)
1x2
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
48.1
Vas(l)
23
Qts
0.374
Qms
3.3
Qes
0.421
Bl(Tm)
0
Mms(gr)
175
Cms(mm/N)
60.243
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
4
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
13
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
4000
RMS Power(W.)
2000
Number of Coils
2
Impedance Z-Nom(Ohm)
1
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
0
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0.399
Total Diameter (mm)
330
Cutout Diameter (mm)
284
Mounting Depth (mm)
152
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
