Model

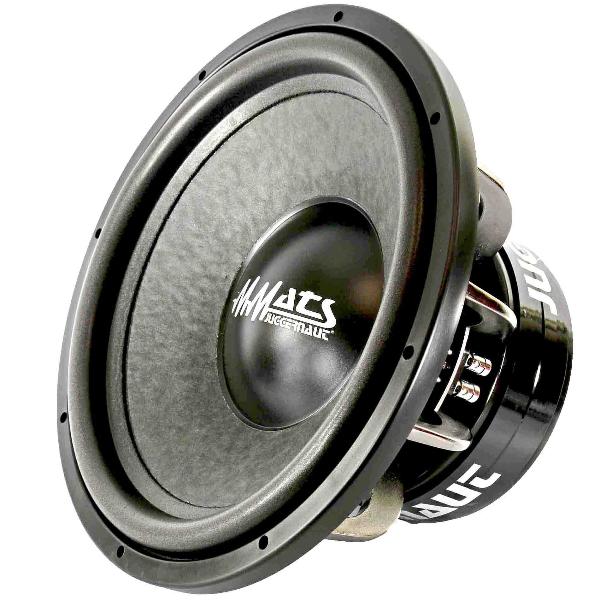

Mmats JUGGERNAUT 15 D2
Rating
DIAM
15"
FS(Hz)
38.4
VAS(l)
87.5
QTS
0.33
PWR(W)
2000
SPL(dB)
93.3
IMP(Ohm)
2x2
avb
PROD
Thiele-Small Parameters
Fs(Hz)
38.4
Vas(l)
87.5
Qts
0.33
Qms
5.272
Qes
0.352
Bl(Tm)
12.1
Mms(gr)
213
Cms(mm/N)
0.081
Rms(kg/s)
9.72
Le(mH)
0
Re(Ohm)
1
Sd(sq.mm)
87300
Vd(l)
1.729
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
2000
RMS Power(W.)
1000
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
1.35
Sensitivity(dB) 1-W
93.3
Sensitivity(dB) 2.8-V
102.3
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
397
Cutout Diameter (mm)
357
Mounting Depth (mm)
181
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6P
