Model

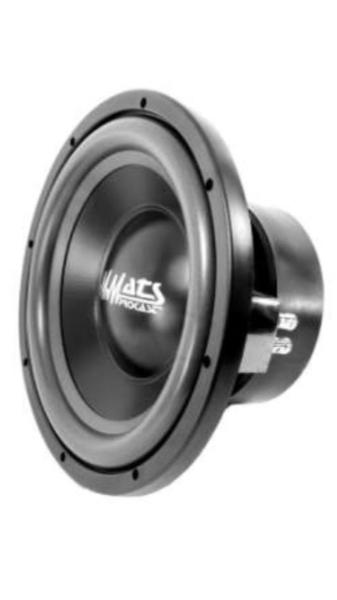

Mmats PRO AUDIO PROCAST-10
Rating
DIAM
10"
FS(Hz)
27.5
VAS(l)
59.4
QTS
0.34
PWR(W)
1200
SPL(dB)
87.3
IMP(Ohm)
4x2
avb
PROD
Thiele-Small Parameters
Fs(Hz)
27.5
Vas(l)
59.4
Qts
0.337
Qms
11.7
Qes
0.347
Bl(Tm)
12.7
Mms(gr)
90
Cms(mm/N)
0.373
Rms(kg/s)
1.33
Le(mH)
0
Re(Ohm)
3.6
Sd(sq.mm)
33503
Vd(l)
0.737
X-max(mm)
22
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
1200
RMS Power(W.)
600
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.34
Sensitivity(dB) 1-W
87.3
Sensitivity(dB) 2.8-V
90.8
Mounting Information
Speaker Displacement (l)
3.39
Total Diameter (mm)
275
Cutout Diameter (mm)
235
Mounting Depth (mm)
149
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
