Model

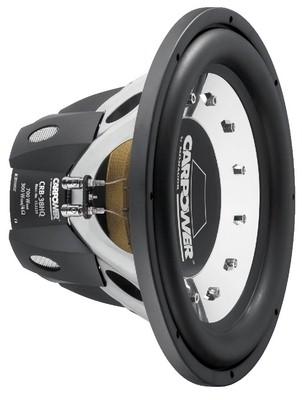

Monacor CRB-38HQ
Rating
DIAM
15"
FS(Hz)
22
VAS(l)
177
QTS
0.49
PWR(W)
700
SPL(dB)
87.1
IMP(Ohm)
4x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
22
Vas(l)
177
Qts
0.49
Qms
3.95
Qes
0.56
Bl(Tm)
15.6
Mms(gr)
257
Cms(mm/N)
0.204
Rms(kg/s)
300
Le(mH)
0
Re(Ohm)
3.8
Sd(sq.mm)
77900
Vd(l)
0.467
X-max(mm)
6
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
700
RMS Power(W.)
300
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
87.1
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
348
Mounting Depth (mm)
190
Magnet Diameter (mm)
190
Optimum Enclosures
Enclosures
Closed, BP4
