Model

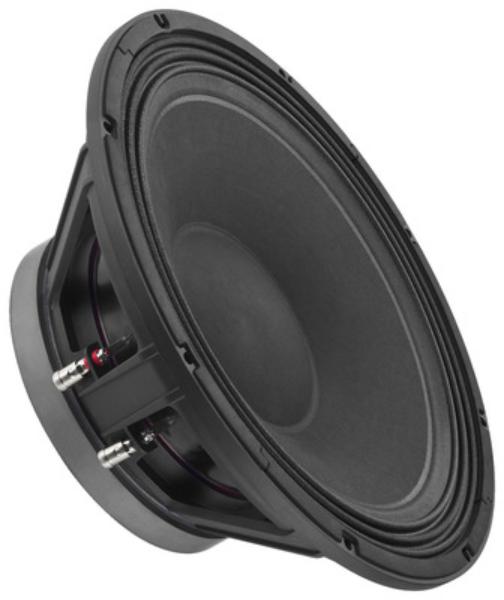

Monacor FTR15-4080HDX
Rating
DIAM
15"
FS(Hz)
40
VAS(l)
105
QTS
0.33
PWR(W)
2000
SPL(dB)
94.6
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
40
Vas(l)
105
Qts
0.33
Qms
3.98
Qes
0.36
Bl(Tm)
23.5
Mms(gr)
153
Cms(mm/N)
0.103
Rms(kg/s)
9.662
Le(mH)
1.8
Re(Ohm)
5.2
Sd(sq.mm)
84781
Vd(l)
0.678
X-max(mm)
8
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
2000
RMS Power(W.)
1000
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
1.8
Sensitivity(dB) 1-W
94.6
Sensitivity(dB) 2.8-V
96.5
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
385
Cutout Diameter (mm)
351
Mounting Depth (mm)
168
Magnet Diameter (mm)
220
Optimum Enclosures
Enclosures
Vented, BP6
