Model

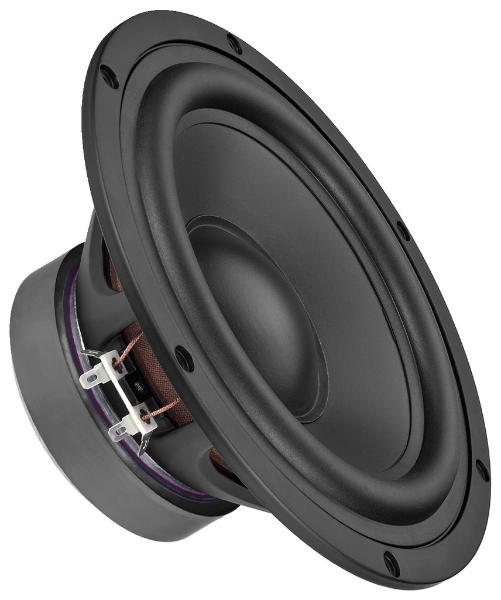

Monacor MONACOR SPH-8M
Rating
DIAM
8"
FS(Hz)
35
VAS(l)
44
QTS
0.41
PWR(W)
150
SPL(dB)
87.6
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
35
Vas(l)
44
Qts
0.41
Qms
2.3
Qes
0.5
Bl(Tm)
9
Mms(gr)
27
Cms(mm/N)
0.71
Rms(kg/s)
2.63
Le(mH)
0.78
Re(Ohm)
6.5
Sd(sq.mm)
24000
Vd(l)
0.108
X-max(mm)
5
X-mech(mm)
6
General Parameters
Diameter (inch)
8
Max Power(W.)
150
RMS Power(W.)
100
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.36
Sensitivity(dB) 1-W
87.6
Sensitivity(dB) 2.8-V
89
Mounting Information
Speaker Displacement (l)
2
Total Diameter (mm)
222
Cutout Diameter (mm)
180
Mounting Depth (mm)
97
Magnet Diameter (mm)
110
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
