Model

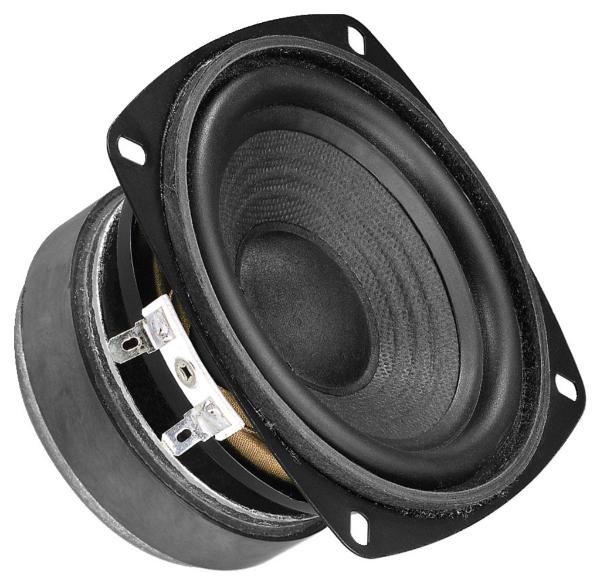

Monacor SP-100/8
Rating
DIAM
4"
FS(Hz)
61
VAS(l)
4.7
QTS
0.37
PWR(W)
60
SPL(dB)
85.7
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
61
Vas(l)
4.7
Qts
0.37
Qms
2.28
Qes
0.442
Bl(Tm)
5.5
Mms(gr)
6
Cms(mm/N)
1.238
Rms(kg/s)
0.92
Le(mH)
0.4
Re(Ohm)
6.5
Sd(sq.mm)
5174
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
4
Max Power(W.)
60
RMS Power(W.)
30
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.23
Sensitivity(dB) 1-W
85.7
Sensitivity(dB) 2.8-V
86.6
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
106
Cutout Diameter (mm)
103
Mounting Depth (mm)
62
Magnet Diameter (mm)
103
Optimum Enclosures
Enclosures
Vented, BP6
