Model

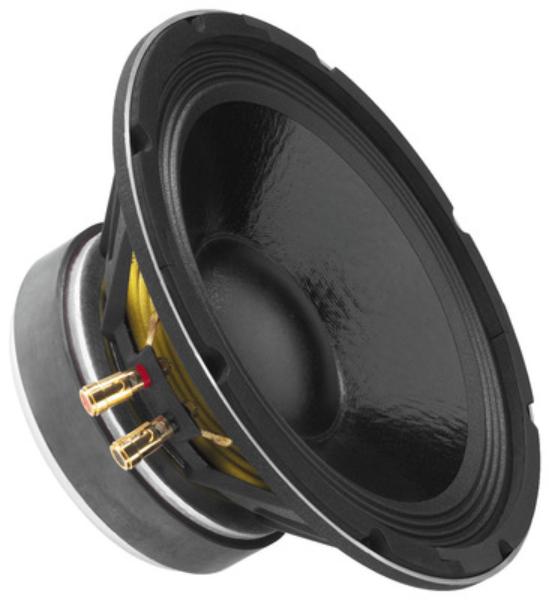

Monacor SP-10A/302PA
Rating
DIAM
10"
FS(Hz)
55
VAS(l)
40
QTS
0.3
PWR(W)
600
SPL(dB)
95.2
IMP(Ohm)
8x0
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
55
Vas(l)
40
Qts
0.3
Qms
7.4
Qes
0.31
Bl(Tm)
15.8
Mms(gr)
35
Cms(mm/N)
0.239
Rms(kg/s)
1.634
Le(mH)
6.4
Re(Ohm)
6.4
Sd(sq.mm)
34600
Vd(l)
0.138
X-max(mm)
4
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
600
RMS Power(W.)
300
Number of Coils
0
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
2.07
Sensitivity(dB) 1-W
95.2
Sensitivity(dB) 2.8-V
96.2
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
260
Cutout Diameter (mm)
234
Mounting Depth (mm)
112
Magnet Diameter (mm)
154
Optimum Enclosures
Enclosures
Vented, BP6
