Model

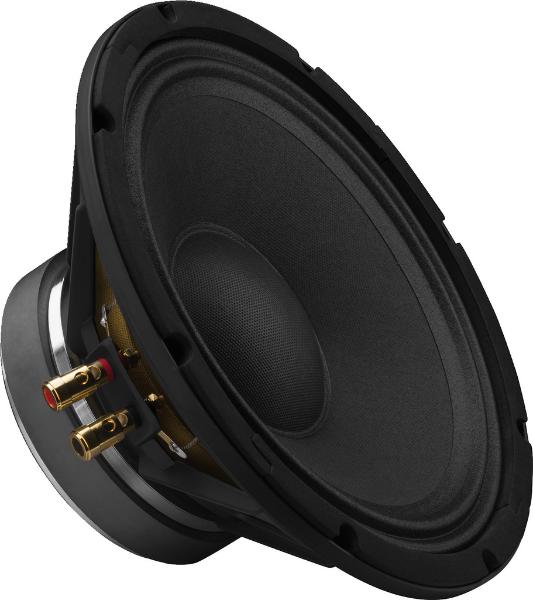

Monacor SP-110PA
Rating
DIAM
10"
FS(Hz)
61
VAS(l)
38
QTS
0.47
PWR(W)
300
SPL(dB)
94.3
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
61
Vas(l)
38
Qts
0.47
Qms
10.7
Qes
0.49
Bl(Tm)
10.9
Mms(gr)
29
Cms(mm/N)
0.235
Rms(kg/s)
1.04
Le(mH)
0.68
Re(Ohm)
5.2
Sd(sq.mm)
36400
Vd(l)
0.146
X-max(mm)
4
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
300
RMS Power(W.)
150
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
1.7
Sensitivity(dB) 1-W
94.3
Sensitivity(dB) 2.8-V
96.2
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
260
Cutout Diameter (mm)
234
Mounting Depth (mm)
106
Magnet Diameter (mm)
135
Optimum Enclosures
Enclosures
Vented, BP6
