Model

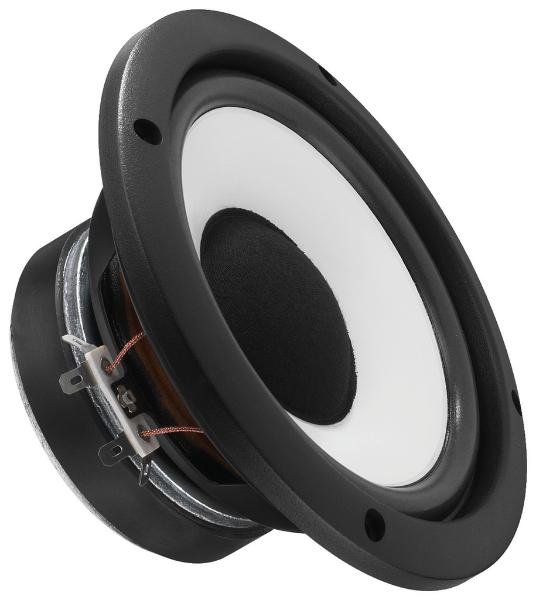

Monacor SP-150
Rating
DIAM
7"
FS(Hz)
35
VAS(l)
35
QTS
0.5
PWR(W)
60
SPL(dB)
85.8
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
35
Vas(l)
35
Qts
0.5
Qms
2.8
Qes
0.607
Bl(Tm)
7.5
Mms(gr)
10
Cms(mm/N)
1.988
Rms(kg/s)
0.82
Le(mH)
0.45
Re(Ohm)
6.5
Sd(sq.mm)
12700
Vd(l)
0.032
X-max(mm)
3
X-mech(mm)
0
General Parameters
Diameter (inch)
7
Max Power(W.)
60
RMS Power(W.)
30
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.24
Sensitivity(dB) 1-W
85.8
Sensitivity(dB) 2.8-V
86.7
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
170
Cutout Diameter (mm)
145
Mounting Depth (mm)
65
Magnet Diameter (mm)
100
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
