Model

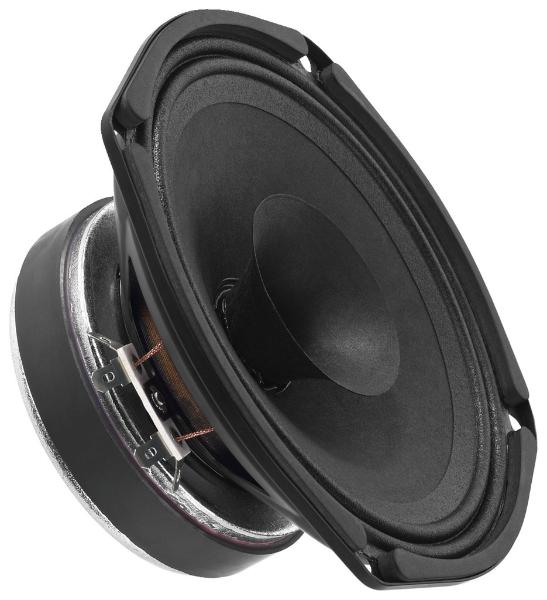

Monacor SP-155X
Rating
DIAM
6"
FS(Hz)
70
VAS(l)
14
QTS
0.67
PWR(W)
50
SPL(dB)
89.2
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
70
Vas(l)
14
Qts
0.67
Qms
2.9
Qes
0.88
Bl(Tm)
4.6
Mms(gr)
7
Cms(mm/N)
0.795
Rms(kg/s)
0.99
Le(mH)
0.4
Re(Ohm)
6.5
Sd(sq.mm)
11143
Vd(l)
0.011
X-max(mm)
1
X-mech(mm)
2
General Parameters
Diameter (inch)
6
Max Power(W.)
50
RMS Power(W.)
25
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.53
Sensitivity(dB) 1-W
89.2
Sensitivity(dB) 2.8-V
90.1
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
158
Cutout Diameter (mm)
146
Mounting Depth (mm)
69
Magnet Diameter (mm)
100
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
